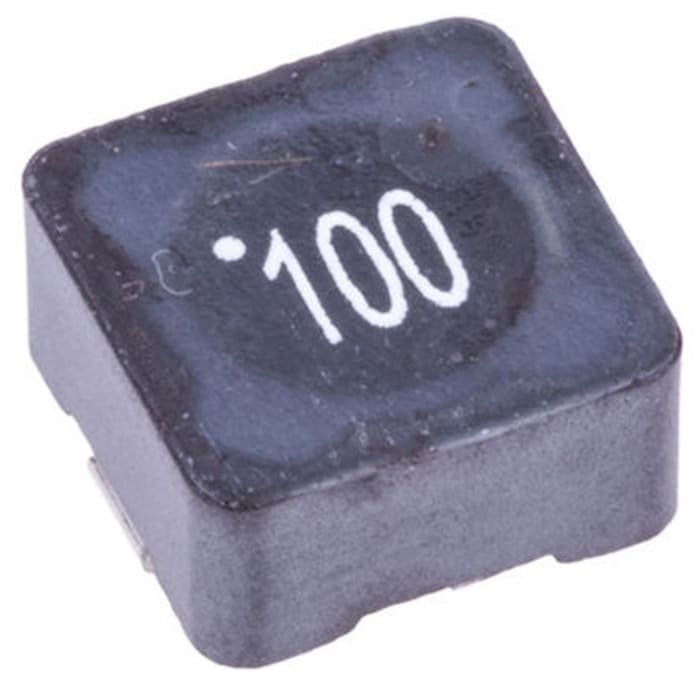

Wurth, WE-PD Shielded Wire-wound SMD Inductor with a Ferrite Core, 10 μH ±20% 2A Idc
Tehnilised dokumendid
Spetsifikatsioonid:
Brand
Wurth ElektronikInductance
10 μH
Maximum dc Current
2A
Length
7.3mm
Depth
7.3mm
Height
4.5mm
Dimensions
7.3 x 7.3 x 4.5mm
Shielded
Yes
Tolerance
±20%
Maximum DC Resistance
49mΩ
Series
WE-PD
Core Material
Ferrite
Maximum Self Resonant Frequency
23MHz
Maximum Operating Temperature
+125°C
Minimum Operating Temperature
-40°C
