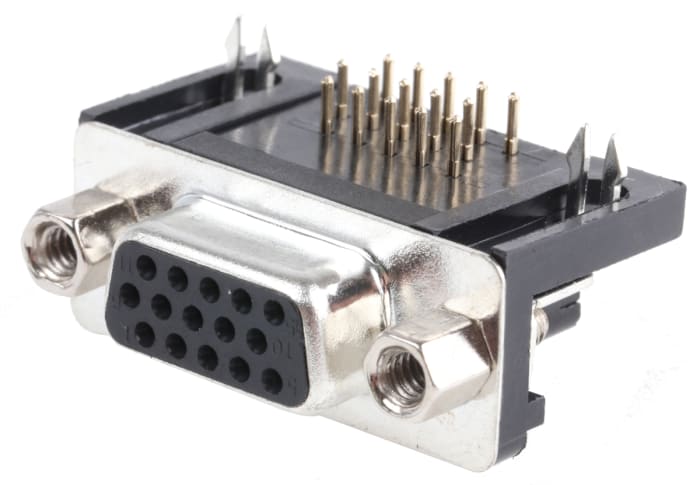

Amphenol Through Hole, 15 Pin Solder D-sub Connector, Right Angle Socket
Tehnilised dokumendid
Spetsifikatsioonid:
Brand
AmphenolNumber Of Contacts
15
Gender
Female
Body Orientation
Right Angle
Mounting Type
Through Hole
Pitch
2.29mm
Termination Method
Solder
Current Rating
5A
Housing Material
Steel
Voltage Rating
600 V ac
Length
30.84mm
Width
12.55mm
Depth
22.22mm
Dimensions
30.84 x 12.55 x 22.22mm
Contact Plating
Gold
Contact Material
Copper Alloy
Minimum Operating Temperature
-55°C
Maximum Operating Temperature
+150°C
