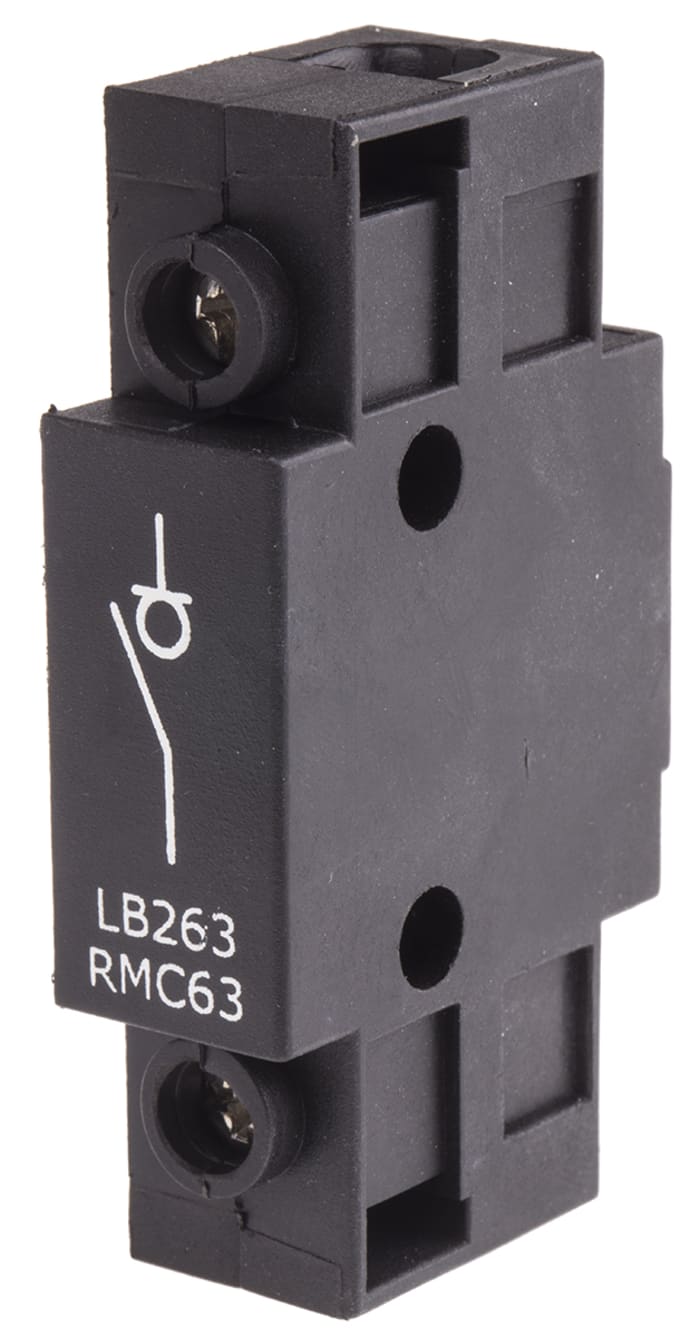

Eaton 1P Pole Panel Mount Isolator Switch - 63A Maximum Current, 22kW Power Rating, IP65
Tehnilised dokumendid
Spetsifikatsioonid:
Brand
EatonNumber of Poles
1P
Maximum Current
63A
Mounting Type
Panel Mount
IP Rating
IP65
Power Rating
22kW
Voltage Rating
415V ac
Electrical Phase
1
Accepts Padlocks
Yes
Handle Colour
Red
Auxiliary Contacts Available
Yes
Normal State Configuration
NO
Switch Rating
1300A
Length
88mm
Width
88mm
Depth
54mm
Maximum Operating Temperature
+50°C
Throw Configuration
Single
Terminal Type
Screw
Minimum Operating Temperature
-25°C
Päritoluriik
United Kingdom
Toote üksikasjad
Eaton Panel Mount Isolator Switch
Eaton's panel mount isolator switch can sometimes be referred to as a switch disconnector, this is because it has been created and designed to safely isolate a circuit whilst it is being used or maintained. This isolator switch breaks or isolates a circuit through the rotation of the rotary handle and locking ring, manually disconnecting the power supply to isolated parts of the circuit. This type of non-fused isolator switch will be found isolating circuit breakers, transmission lines, transformers and a multitude of other applications.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 143,00
€ 143,00 tk (ilma käibemaksuta)
€ 174,46
€ 174,46 tk (koos käibemaksuga)
1
€ 143,00
€ 143,00 tk (ilma käibemaksuta)
€ 174,46
€ 174,46 tk (koos käibemaksuga)
1
Lao andmed ajutiselt ei ole saadaval.
Palun kontrollige hiljem uuesti.
