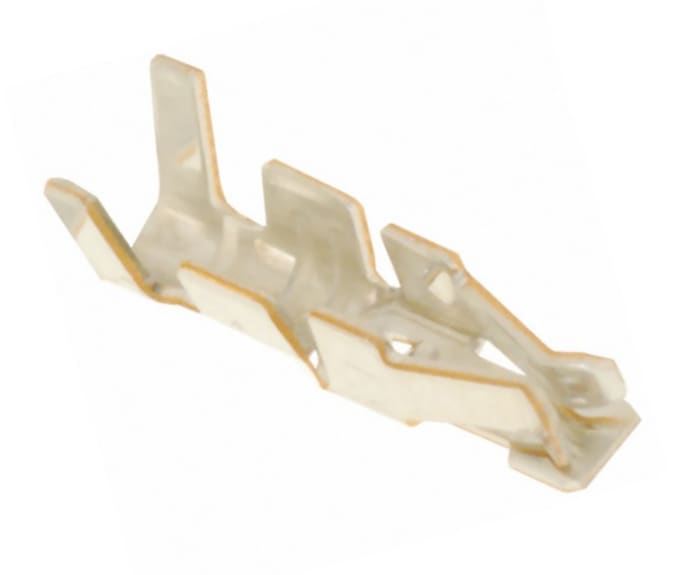

JST PA, PBV, PHD Series Female Crimp Terminal Contact, 26AWG Min, 22AWG Max
Tehnilised dokumendid
Spetsifikatsioonid:
Brand
JSTGender
Female
For Use With
PA, PBV and PHD Connector Housings
Series
PA, PBV, PHD
Minimum Wire Size mm²
0.1mm²
Termination Method
Crimp
Maximum Wire Size mm²
0.3mm²
Contact Plating
Tin
Minimum Wire Size AWG
26AWG
Contact Material
Phosphor Bronze
Maximum Wire Size AWG
22AWG
Maximum Contact Resistance
20mΩ
Minimum Operating Temperature
-25°C
Maximum Current
3A
Maximum Operating Temperature
+85°C
Päritoluriik
Japan
Toote üksikasjad
Optocoupler, Intelligent Power Module (IPM) Interface, Avago Technologies
Avago Technologies optocouplers for IPM (Intelligent Power Module) interface exhibit short propagation delay, fast IGBT switching, high common mode transient rejection and wide operating temperature range.
Avago Technologies R2Coupler™ isolation products provide the reinforced insulation and reliability needed for critical automotive and high temperature applications.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 2,75
€ 2,75 1 pakk 50 tk (ilma käibemaksuta)
€ 3,35
€ 3,35 1 pakk 50 tk (koos käibemaksuga)
1
€ 2,75
€ 2,75 1 pakk 50 tk (ilma käibemaksuta)
€ 3,35
€ 3,35 1 pakk 50 tk (koos käibemaksuga)
1
Lao andmed ajutiselt ei ole saadaval.
Palun kontrollige hiljem uuesti.
| kogus | Ühikuhind |
|---|---|
| 1 - 9 | € 2,75 |
| 10 - 49 | € 2,35 |
| 50 - 99 | € 2,05 |
| 100+ | € 1,70 |
