Microchip, 8bit PIC, PIC16F Microcontroller, 20MHz, 1024 words Flash, 14-Pin SOIC
Tehnilised dokumendid
Spetsifikatsioonid:
Brand
MicrochipFamily Name
PIC16F
Package Type
SOIC
Mounting Type
Surface Mount
Pin Count
14
Device Core
PIC
Data Bus Width
8bit
Program Memory Size
1024 words
Maximum Frequency
20MHz
RAM Size
67 B
USB Channels
0
Number of SPI Channels
0
Number of USART Channels
0
Number of UART Channels
0
Number of I2C Channels
0
Typical Operating Supply Voltage
2 → 5.5 V
Number of CAN Channels
0
Number of LIN Channels
0
Width
3.9mm
Dimensions
8.65 x 3.9 x 1.5mm
Program Memory Type
Flash
Number of Ethernet Channels
0
Number of PCI Channels
0
Maximum Number of Ethernet Channels
0
Minimum Operating Temperature
-40 °C
Instruction Set Architecture
RISC
Number of ADC Units
1
Maximum Operating Temperature
+85 °C
Length
8.65mm
ADCs
3 x 8 bit
Height
1.5mm
Toote üksikasjad

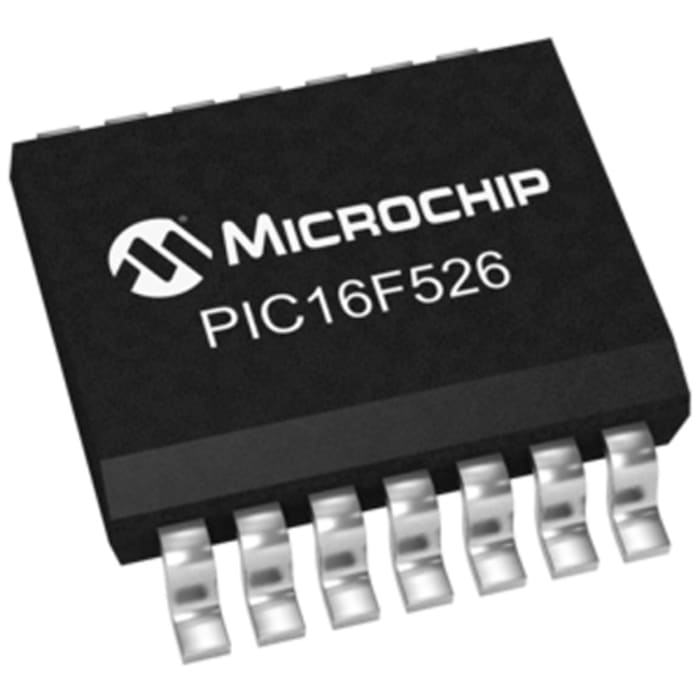

PIC16F526 8-Bit Flash Microcontrollers
The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.
The PIC16F526 family of microcontrollers is based upon Microchip’s Baseline core with a 2 level deep hardware stack and 33 instructions. These MCUs provide up to 5 MIPS, 1.5 Kbytes program memory, 67 bytes RAM and Data EEPROM of 64 bytes. On board is a configurable oscillator factory calibrated to ±1% accuracy.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 59,85
€ 1,05 tk (torus 57) (ilma käibemaksuta)
€ 73,02
€ 1,281 tk (torus 57) (koos käibemaksuga)
57
€ 59,85
€ 1,05 tk (torus 57) (ilma käibemaksuta)
€ 73,02
€ 1,281 tk (torus 57) (koos käibemaksuga)
57
Lao andmed ajutiselt ei ole saadaval.
Palun kontrollige hiljem uuesti.
| kogus | Ühikuhind | Per Tuub |
|---|---|---|
| 57 - 57 | € 1,05 | € 59,85 |
| 114+ | € 1,00 | € 57,00 |
