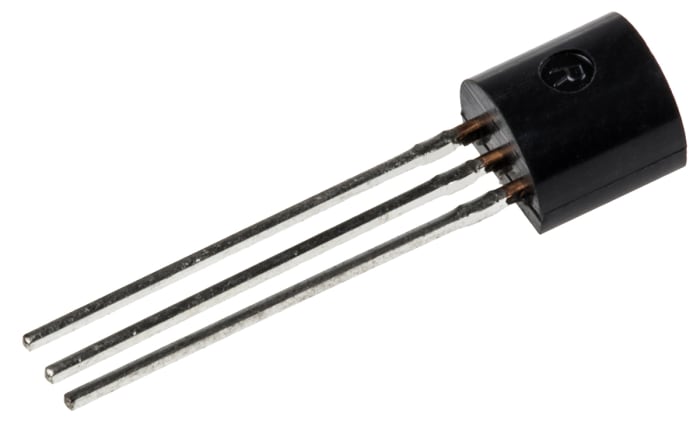

N-Channel MOSFET Transistor, 150 mA, 60 V, 3-Pin TO-92 onsemi VN2222LLG
Tehnilised dokumendid
Spetsifikatsioonid:
Brand
ON SemiconductorChannel Type
N
Maximum Continuous Drain Current
150 mA
Maximum Drain Source Voltage
60 V
Package Type
TO-92
Mounting Type
Through Hole
Pin Count
3
Maximum Drain Source Resistance
7.5 Ω
Channel Mode
Enhancement
Maximum Power Dissipation
400 mW
Maximum Gate Source Voltage
-20 V, +20 V
Number of Elements per Chip
1
Maximum Operating Temperature
+150 °C
Length
5.2mm
Width
4.19mm
Height
5.33mm
Minimum Operating Temperature
-55 °C
