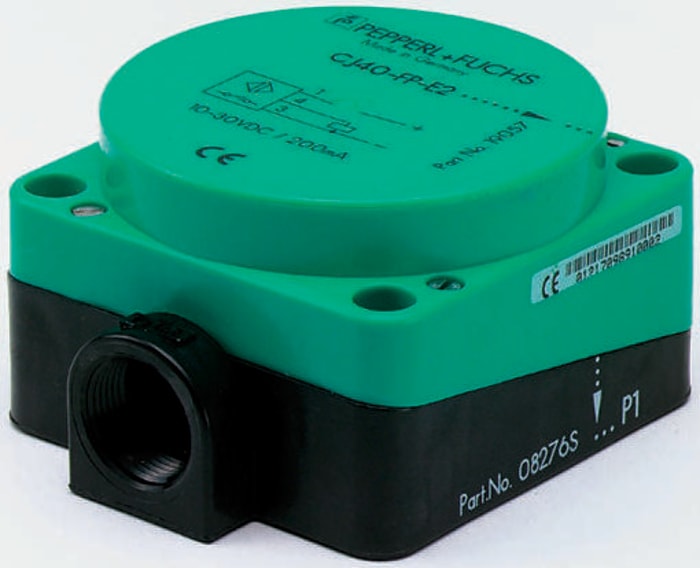

Pepperl + Fuchs Capacitive Block Proximity Sensor, 40 mm Detection, PNP NO+NC, 10 → 60 V dc
Tehnilised dokumendid
Spetsifikatsioonid:
Brand
Pepperl + FuchsSensor Technology
Capacitive
Body Style
Block
Detection Range
40 mm
Output Function
NO+NC
Digital Switching Output Type
PNP
Connection Type
Screw Terminal
Supply Voltage
10 → 60 V dc
Length
80mm
IP Rating
IP65
Width
80mm
Housing Material
PBT, POM
Maximum dc Voltage
60V
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+70°C
Switching Frequency
10 Hz
Short Circuit Overload Protection
Yes
Depth
52.5mm
Maximum Switching Frequency
10Hz
Switching Current
200 mA
Reverse Polarity Protection
Yes
Toote üksikasjad
Comfort Series - Block Style
Pepperl & Fuchs
Capacitive sensors can also be used to detect non metallic materials i.e. plastic, paper, fluids etc. Can be used for the detection of levels, or as a hand-held switch.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 337,76
€ 337,76 tk (ilma käibemaksuta)
€ 412,07
€ 412,07 tk (koos käibemaksuga)
1
€ 337,76
€ 337,76 tk (ilma käibemaksuta)
€ 412,07
€ 412,07 tk (koos käibemaksuga)
1
Lao andmed ajutiselt ei ole saadaval.
Palun kontrollige hiljem uuesti.
