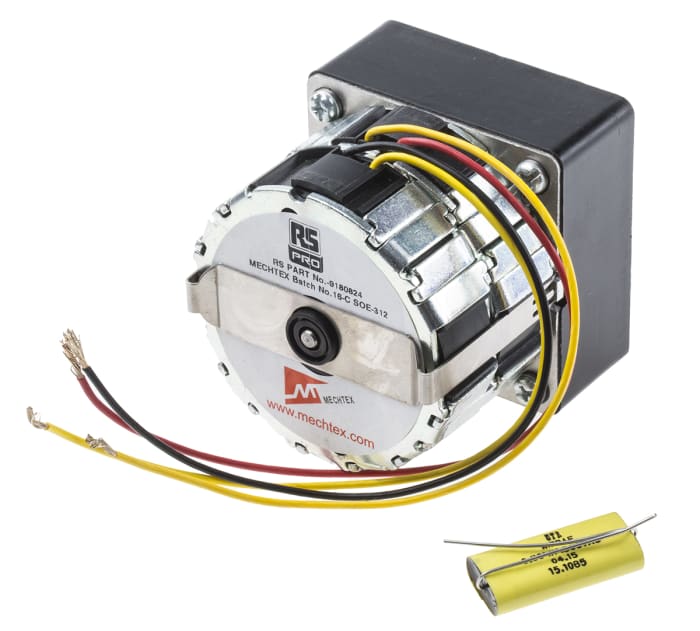

RS PRO Reversible Synchronous Geared AC Geared Motor, 9.5 W, 1 Phase, 240 V
Tehnilised dokumendid
Spetsifikatsioonid:
Brand
RS ProPower Rating
9.5 W
Frequency Rating
50Hz
AC Motor Type
Synchronous Geared
Supply Voltage
240 V
Phase
1
Output Speed
30 rpm
Gearhead Type
Spur
Shaft Diameter
4mm
Shaft Length
10mm
Width
65mm
Maximum Output Torque
10.5 Ncm
Rotation
Reversible
Current Rating
31 → 39 mA
Length
65mm
Bearing Type
Sintered
Dimensions
65 x 65 x 77 mm
Standards Met
RoHS
Series
MTR8c
Depth
77mm
Päritoluriik
India
Toote üksikasjad
RS Pro MTR8c Series Bi-Directional Synchronous Motors
RS Pro MT8c series reversible synchronous motors are permanent magnet type with two stator windings for single phase.
