Vishay 2200μF Aluminium Electrolytic Capacitor 40V dc, Axial, Through Hole - MAL202117222E3
Tehnilised dokumendid
Spetsifikatsioonid:
Brand
VishayCapacitance
2200µF
Voltage
40V dc
Mounting Type
Axial, Through Hole
Technology
Aluminium Electrolytic
Dimensions
18 (Dia.) x 30mm
Length
30mm
Minimum Operating Temperature
-40°C
Diameter
18mm
Maximum Operating Temperature
+85°C
Lifetime
8000h
Series
021 ASM
Equivalent Series Resistance
118mΩ
Tolerance
±20%
Ripple Current
1.39A
Leakage Current
180 μA
Toote üksikasjad

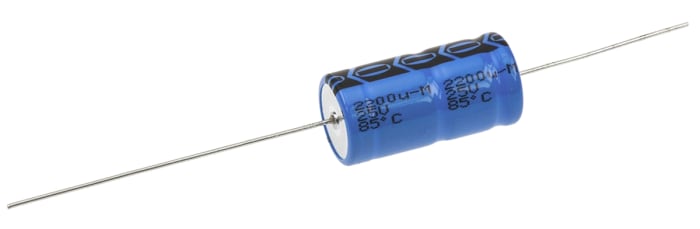

Vishay 021 ASM Series Aluminium Electrolytic Capacitors
021 ASM electrolytic capacitors from Vishay are constructed from a cylindrical aluminium case insulated with a blue sleeve. These electrolytic capacitors feature a non-solid electrolyte and are charge and discharge proof. 021 ASM electrolytic capacitors have a long lifespan between 2500 hours and 8000 hours at +85°C.
Standards
CEI 384-4, DIN 41316
Axial 85°C
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 31,00
€ 6,20 tk (pakis 5) (ilma käibemaksuta)
€ 37,82
€ 7,564 tk (pakis 5) (koos käibemaksuga)
5
€ 31,00
€ 6,20 tk (pakis 5) (ilma käibemaksuta)
€ 37,82
€ 7,564 tk (pakis 5) (koos käibemaksuga)
5
Lao andmed ajutiselt ei ole saadaval.
Palun kontrollige hiljem uuesti.
| kogus | Ühikuhind | Per Pakend |
|---|---|---|
| 5 - 20 | € 6,20 | € 31,00 |
| 25 - 45 | € 5,60 | € 28,00 |
| 50 - 120 | € 5,20 | € 26,00 |
| 125 - 245 | € 4,90 | € 24,50 |
| 250+ | € 4,60 | € 23,00 |
