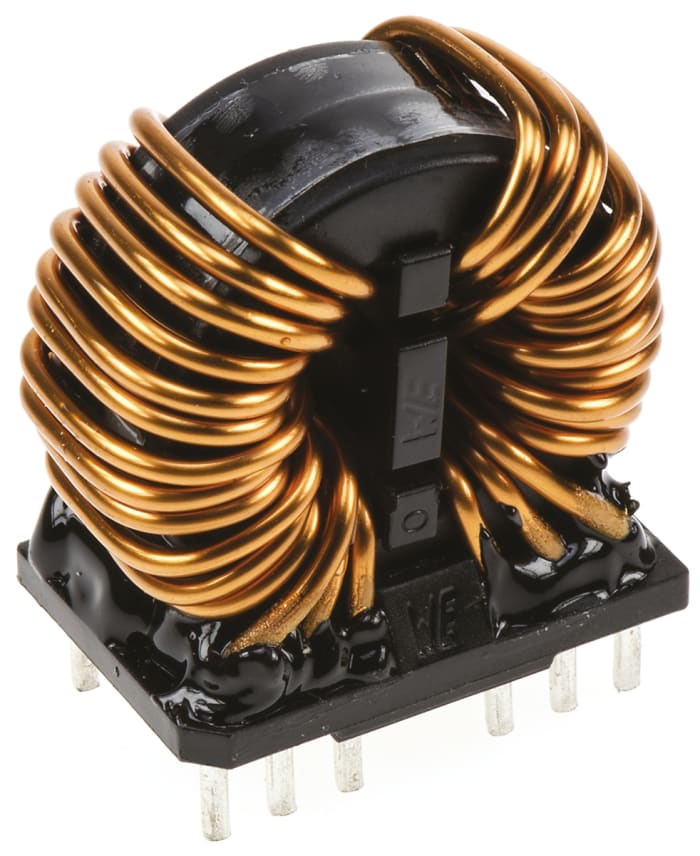

Wurth 2 x 3 mH -30 → +50% Nano Crystalline Common Mode Choke, Max SRF:1 kHz → 300 MHz, 23A Idc, 2 x 3mΩ
Tehnilised dokumendid
Spetsifikatsioonid:
Brand
Wurth ElektronikInductance
2 x 3 mH
Maximum dc Current
23A
Mounting Type
Through Hole
Maximum DC Resistance
2 x 3mΩ
Tolerance
-30 → +50%
Length
36mm
Depth
23mm
Height
36mm
Dimensions
36 x 23 x 36mm
Core Material
Nano Crystalline
Maximum Self Resonant Frequency
1 kHz → 300 MHz
Lead Pitch
25mm
Series
WE-CMBNC
Lead Diameter
2mm
Maximum Operating Temperature
+125°C
Minimum Operating Temperature
-40°C
Terminal Type
Through Hole
Päritoluriik
China
Toote üksikasjad
Wurth WE-CMBNC Series Common Mode Power Line Chokes
Wurth Leaded Inductors (Chokes)
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 20,80
€ 20,80 tk (ilma käibemaksuta)
€ 25,38
€ 25,38 tk (koos käibemaksuga)
1
€ 20,80
€ 20,80 tk (ilma käibemaksuta)
€ 25,38
€ 25,38 tk (koos käibemaksuga)
1
Lao andmed ajutiselt ei ole saadaval.
Palun kontrollige hiljem uuesti.
