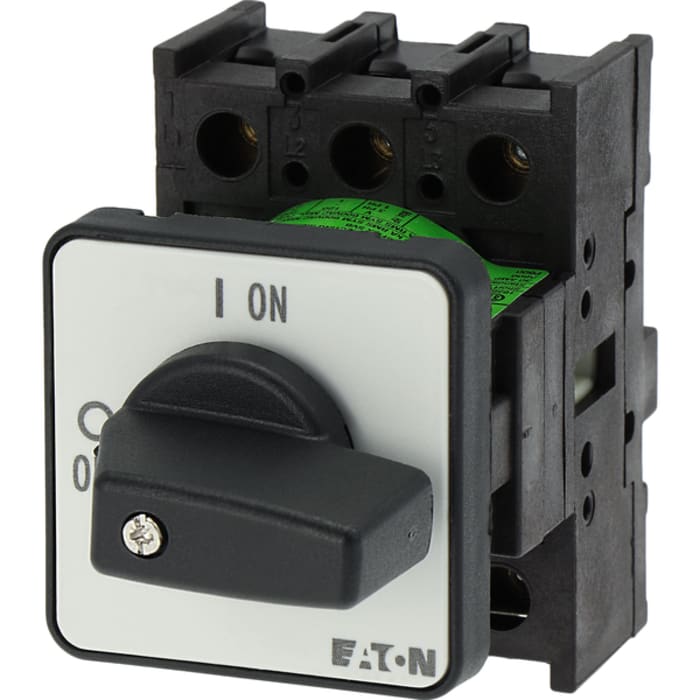

Eaton 3 Pole Flush Mount Isolator Switch - 32A Maximum Current, IP65
Tehnilised dokumendid
Spetsifikatsioonid:
Brand
EatonNumber of Poles
3
Maximum Current
32A
Mounting Type
Flush Mount
IP Rating
IP65
Voltage Rating
690V ac
Electrical Phase
1, 3
Handle Colour
Black
Series
EATON MOELLER
Enclosed/Not Enclosed
Enclosed
Switch Rating
5kA
Length
49mm
Width
95mm
Depth
70mm
Terminal Type
Screw
Maximum Operating Temperature
+50°C
Minimum Operating Temperature
-25°C
Päritoluriik
United Kingdom
Toote üksikasjad
Eaton Rotary Cam Switches - P1 Series
The P1 series of rotary cam switches and switch disconnectors from Eaton are compact and robust. Rotary Cam Switches can be used for many switching and control applications, for example as ON-OFF, main, main/control, or instrument switches. The device consists of a hand actuator, the switch unit and the mounting accessories. This range of cam switches is also suitable for use in applications where there is a need to manually power down and disconnect electrical equipment for servicing and maintenance by cutting the power supply to isolated parts of the circuit. These cam switches can also be used as safety switches.
With an IP65 degree of protection, the devices are suited to hard-wearing industrial environments with a rated uninterrupted current of up to 20 A. Available in four different mounting options (surface mount, flush-mount, rear mount, and service distribution board mount). These cam switches can be selected in a multitude of contact sequence configurations.
This professional range of cam switches offers corrosion resistance, weather sustainability, insulating material resistance to normal heat and fire due to internal electric effects and more. It comes with various advantages including high reliability, high adaptability, low power usage and makes the product efficient in its performance.
Eaton
Lao andmed ajutiselt ei ole saadaval.
Palun kontrollige hiljem uuesti.
€ 54,00
tk (ilma käibemaksuta)
€ 65,88
tk (koos käibemaksuga)
1
€ 54,00
tk (ilma käibemaksuta)
€ 65,88
tk (koos käibemaksuga)
1
