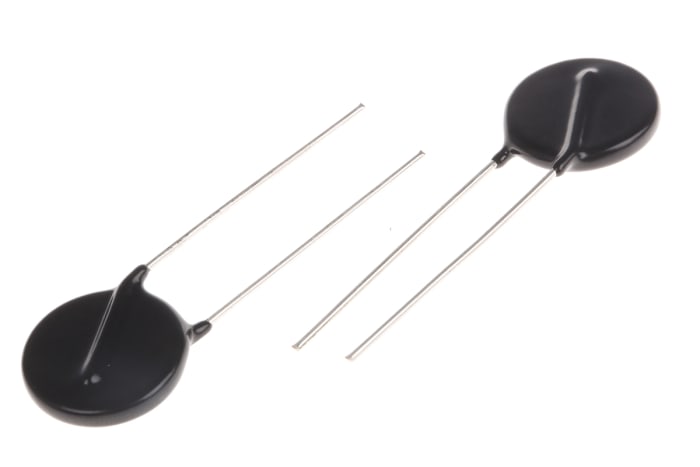

EPCOS, B72220 Varistor 630pF 100A, Clamping 710V, Varistor 430V
Tehnilised dokumendid
Spetsifikatsioonid:
Brand
EpcosVaristor Voltage
430V
Maximum AC Voltage Rating
275V
Maximum DC Voltage Rating
350V
Clamping Voltage
710V
Clamping Current
100A
Material
Metal
Energy
151J
Series
B72220
Diameter
21.5mm
Maximum Surge Current
8000A
Capacitance
630pF
Depth
2.3mm
Thickness
5.4mm
Dimensions
21.5 (Dia.) x 5.4mm
Lead Pitch
10mm
Toote üksikasjad
Metal Oxide Varistors Standard Series
Standard radial epoxy-coated MOV with tinned-copper leads.
Approvals
UL, CSA, VDE
Lao andmed ajutiselt ei ole saadaval.
Palun kontrollige hiljem uuesti.
€ 0,817
tk (pakis 5) (ilma käibemaksuta)
€ 0,997
tk (pakis 5) (koos käibemaksuga)
Standard
5
€ 0,817
tk (pakis 5) (ilma käibemaksuta)
€ 0,997
tk (pakis 5) (koos käibemaksuga)
Standard
5
Osta lahtiselt
| kogus | Ühikuhind | Per Pakend |
|---|---|---|
| 5 - 45 | € 0,817 | € 4,08 |
| 50 - 95 | € 0,789 | € 3,94 |
| 100 - 245 | € 0,761 | € 3,80 |
| 250 - 495 | € 0,738 | € 3,69 |
| 500+ | € 0,719 | € 3,60 |
Tehnilised dokumendid
Spetsifikatsioonid:
Brand
EpcosVaristor Voltage
430V
Maximum AC Voltage Rating
275V
Maximum DC Voltage Rating
350V
Clamping Voltage
710V
Clamping Current
100A
Material
Metal
Energy
151J
Series
B72220
Diameter
21.5mm
Maximum Surge Current
8000A
Capacitance
630pF
Depth
2.3mm
Thickness
5.4mm
Dimensions
21.5 (Dia.) x 5.4mm
Lead Pitch
10mm
Toote üksikasjad
Metal Oxide Varistors Standard Series
Standard radial epoxy-coated MOV with tinned-copper leads.
Approvals
UL, CSA, VDE
