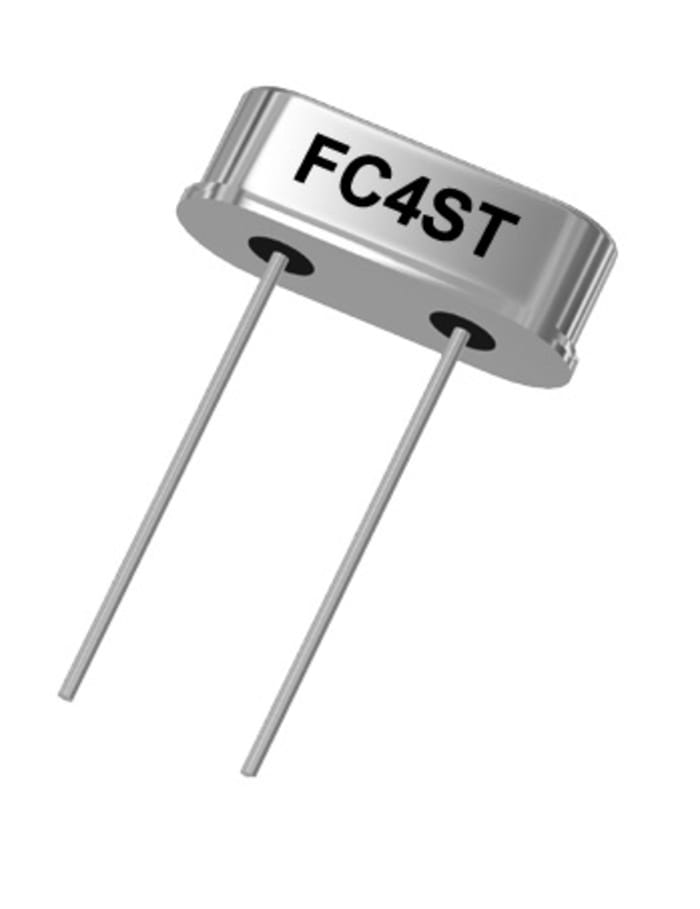

Fox Electronics 10 MHz Crystal ±30 ppm HC-49 2-Pin 3.6 mm 11.35 mm 4.65 mm
Technical Document
Specifications
Brand
Fox ElectronicsProduct Type
Crystal
Standard Frequency
10MHz
Mount Type
Through Hole
Load Capacitance
20pF
Package Type
HC-49
Pin Count
2
Length
11.35mm
Width
4.65 mm
Height
3.6mm
Frequency Tolerance
±30 ppm
Frequency Stability
±50 ppm
Minimum Operating Temperature
-20°C
Series Resistance
60Ω
Maximum Operating Temperature
70°C
Standards/Approvals
No
Automotive Standard
No
Country of Origin
China
Product details
HC49S Fox Electronics
Crystals Through Hole
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Stock information temporarily unavailable.
€ 1.57
€ 0.314 Each (In a Pack of 5) (Exc. Vat)
€ 1.95
€ 0.389 Each (In a Pack of 5) (inc. VAT)
Standard
5
€ 1.57
€ 0.314 Each (In a Pack of 5) (Exc. Vat)
€ 1.95
€ 0.389 Each (In a Pack of 5) (inc. VAT)
Stock information temporarily unavailable.
Standard
5
