ifm electronic 4 wire PT1000 Sensor, -25°C min +140°C max, 25mm Probe Length x 8.2mm Probe Diameter
Technical Document
Specifications
Brand
ifm electronicProbe Diameter
8.2mm
Probe Length
25mm
Probe Material
Stainless Steel
Maximum Temperature Sensed
+140°C
Termination Type
M12 Connector
Response Time
1 s
Minimum Temperature Sensed
-25°C
Country of Origin
Germany
Product details

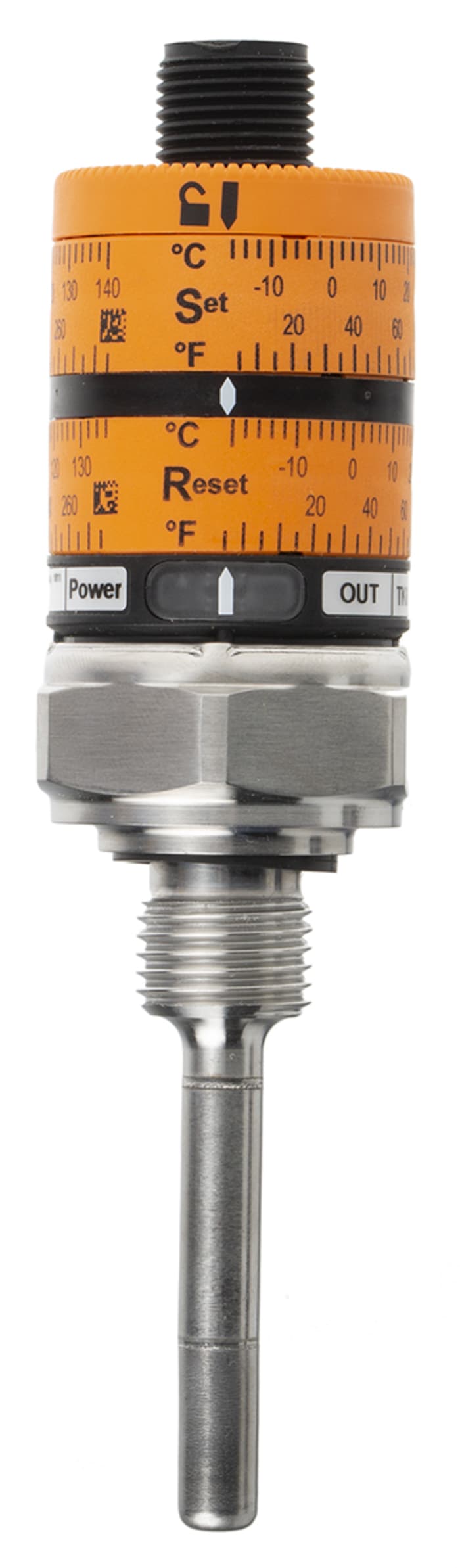

TK6130 - Switching temperature sensor
Temperature sensor with PT1000 measuring element
Switching points adjusted via adjustment wheels on the sensor
Mechanical lock prevents unintentional adjustment
G1/4 process connection, rod length 25 mm
M12 Plug Connector
Gold-plated output contacts
LED status display
High IP67 protection rating
Approvals
CE, UL
€ 102.00
€ 102.00 Each (Exc. Vat)
€ 126.48
€ 126.48 Each (inc. VAT)
1
€ 102.00
€ 102.00 Each (Exc. Vat)
€ 126.48
€ 126.48 Each (inc. VAT)
1
Stock information temporarily unavailable.
Please check again later.
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 102.00 |
| 5+ | € 98.00 |
