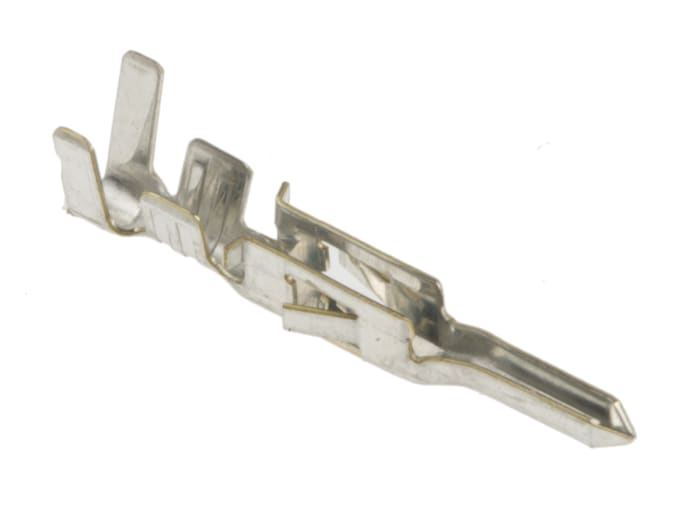

Molex Mini-Fit Series Male Crimp Terminal, 16AWG Max
Technical Document
Specifications
Brand
MolexGender
Male
For Use With
Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings
Series
MINI-FIT
Termination Method
Crimp
Maximum Wire Size mm²
1.3mm²
Contact Plating
Tin
Maximum Wire Size AWG
16AWG
Contact Material
Brass
Series Number
5558
Maximum Contact Resistance
10mΩ
Maximum Current
9A
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+105°C
Product details
Mini-Fit Crimp Contacts
Molex Mini-Fit pin and receptacle crimp contacts are connector contacts for use in the Mini-Fit Junior plug and receptacle housings. These crimp pin and receptacle terminals feature multiple points of contact for a reliable electrical connection and a higher current carrying capacity. Locking tangs on the crimp contacts secure them firmly in the connector housing. These Mini-Fit crimp contacts are available with a range of platings and wire size ranges for design flexibility.
Features and Benefits
Features and Benefits
- Multiple points of contact for reliable electrical connection
- Locking tangs for secure connection in housing
- Range of platings and wire
Applications
- Automotive
- Industrial
- Industrial Automation
- Medical
- Communications and Networking
- Consumer Electronics
More Information :
The extraction tool for this range of crimp connector contacts is 2155900
Molex Minifit Jr.™ Series
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 18.50
€ 0.185 Each (In a Pack of 100) (Exc. Vat)
€ 22.94
€ 0.229 Each (In a Pack of 100) (inc. VAT)
Standard
100
€ 18.50
€ 0.185 Each (In a Pack of 100) (Exc. Vat)
€ 22.94
€ 0.229 Each (In a Pack of 100) (inc. VAT)
Stock information temporarily unavailable.
Standard
100
Stock information temporarily unavailable.
| Quantity | Unit price | Per Pack |
|---|---|---|
| 100 - 900 | € 0.185 | € 18.50 |
| 1000 - 2900 | € 0.147 | € 14.70 |
| 3000 - 7400 | € 0.141 | € 14.10 |
| 7500 - 14900 | € 0.135 | € 13.50 |
| 15000+ | € 0.13 | € 13.00 |
