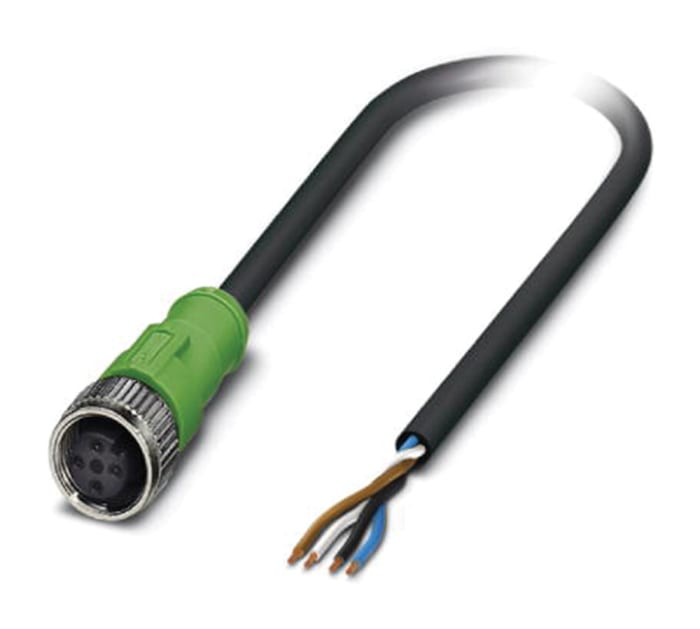

Phoenix Contact Straight Female 4 way M12 to Sensor Actuator Cable, 500mm
Tehnilised dokumendid
Spetsifikatsioonid:
Brand
Phoenix ContactSeries
SACC
Number of Cores
4
Cross Sectional Area
0.34 mm²
Length
500mm
Connector 1 Number of Contacts
4
Connector 1 Gender
Female
Connector 1 Orientation
Straight
Connector 1
M12
Coding
A
Shielded/Unshielded
Unshielded
Shielding
Unshielded
Current Rating
4 A
Voltage Rating
250 V
IP Rating
IP67
Maximum Operating Temperature
+85°C
Operating Temperature Range
-25 → +85 °C
Connector 1 Housing Gender
Male
American Wire Gauge
22 AWG
Conductor Resistance
57.6 mΩ/m
Insulation material
TPE
Fire Behaviour
UL 94 V0 / V2
Minimum Operating Temperature
-25°C
Standards Met
UL
Cable Shape
Round
Conductor Material
Tin Plated Copper Litz Wires
Päritoluriik
Germany
Toote üksikasjad
M12-SPEEDCON sockets with cables
Phoenix Contact brings you a high quality and brilliant range of M12 sockets. The SPEEDCON series are panel mounted and include TPE litz wires on the socket, so you can use this socket immediately. SPEEDCON sockets are also a sealed unit so that it has optimum leak protection. Not to mention, SPEEDCON features a fast locking system that will reduce you cabling time.
SPEEDCON sockets all come in a standard pin assignments and coding's for signal, data and transmissions with a uniform design-in design.
Lao andmed ajutiselt ei ole saadaval.
Palun kontrollige hiljem uuesti.
€ 19,20
tk (ilma käibemaksuta)
€ 23,42
tk (koos käibemaksuga)
1
€ 19,20
tk (ilma käibemaksuta)
€ 23,42
tk (koos käibemaksuga)
1
Osta lahtiselt
| kogus | Ühikuhind |
|---|---|
| 1 - 4 | € 19,20 |
| 5 - 24 | € 18,20 |
| 25 - 49 | € 17,30 |
| 50+ | € 16,30 |
