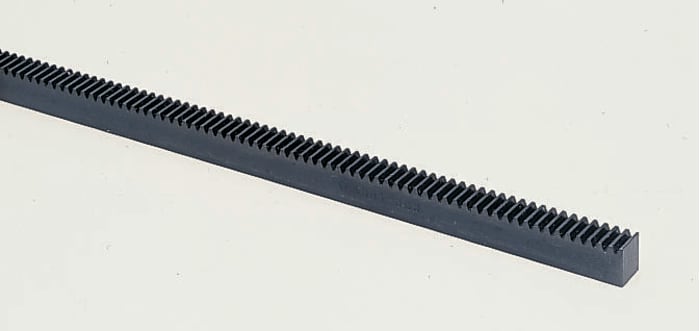

RS PRO 1 Steel Gear Rack, 500mm Long , 160 Teeth , 10mm Face Width
Technical Document
Specifications
Brand
RS ProModule
1
Material
Steel
Overall Length
500mm
Face Width
10mm
Pitch Centre Height
11mm
Flexibility
Flexible
Number Of Teeth
160
Maximum Operating Temperature
+100°C
Country of Origin
China
Product details
Gear Racks
Metric gear racks with a pressure angle of 20°. Gear racks can be supplied in lengths of 300, 500 and 1000mm and with various pitch from 0.5 module to 2 module. Available in steel or nylon to a dimensional tolerance of ±0.25mm.
Gear Racks
Gear Racks with a 20° pressure angle for use with various spur gears, available in S45C Steel, 304 Stainless Steel and Nylon. The racks are supplied in 500mm nominal lengths and 1, 1.5 and 2 module sizes.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 33.60
€ 33.60 Each (Exc. Vat)
€ 41.66
€ 41.66 Each (inc. VAT)
1
€ 33.60
€ 33.60 Each (Exc. Vat)
€ 41.66
€ 41.66 Each (inc. VAT)
Stock information temporarily unavailable.
1
Stock information temporarily unavailable.
| Quantity | Unit price |
|---|---|
| 1 - 4 | € 33.60 |
| 5 - 9 | € 32.90 |
| 10+ | € 32.20 |
