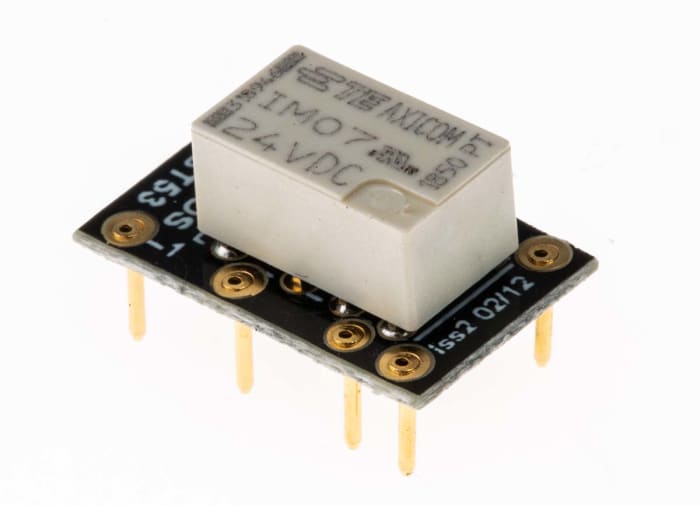

RS PRO PCB Mount Signal Relay, 24V dc Coil, 3A Switching Current, DPDT
Tehnilised dokumendid
Spetsifikatsioonid:
Brand
RS ProCoil Voltage
24V dc
Contact Configuration
DPDT
Mounting Type
PCB Mount
Maximum Switching Current AC
3 A
Maximum Switching Current DC
3 A
Maximum Switching Voltage AC
250V
Maximum Switching Voltage DC
220V
Maximum Switching Power DC
60 W
Series
DS
Length
20mm
Latching
No
Depth
9.9mm
Height
9.9mm
Terminal Type
Through Hole
Switching Current
3A
Number of Poles
2
Maximum Operating Temperature
+70°C
Isolation Coil To Contact
1.5kV rms
Maximum Switching Power AC
125VA
Coil Resistance
2880Ω
Minimum Operating Temperature
-40°C
Coil Power
200mW
Contact Material
Gold Plated
Päritoluriik
United Kingdom
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Lao andmed ajutiselt ei ole saadaval.
Palun kontrollige hiljem uuesti.
€ 67,50
tk (pakis 100) (ilma käibemaksuta)
€ 82,35
tk (pakis 100) (koos käibemaksuga)
100
€ 67,50
tk (pakis 100) (ilma käibemaksuta)
€ 82,35
tk (pakis 100) (koos käibemaksuga)
100
Osta lahtiselt
| kogus | Ühikuhind | Per Pakend |
|---|---|---|
| 100 - 100 | € 67,50 | € 6 750,00 |
| 200 - 400 | € 56,50 | € 5 650,00 |
| 500+ | € 49,60 | € 4 960,00 |
