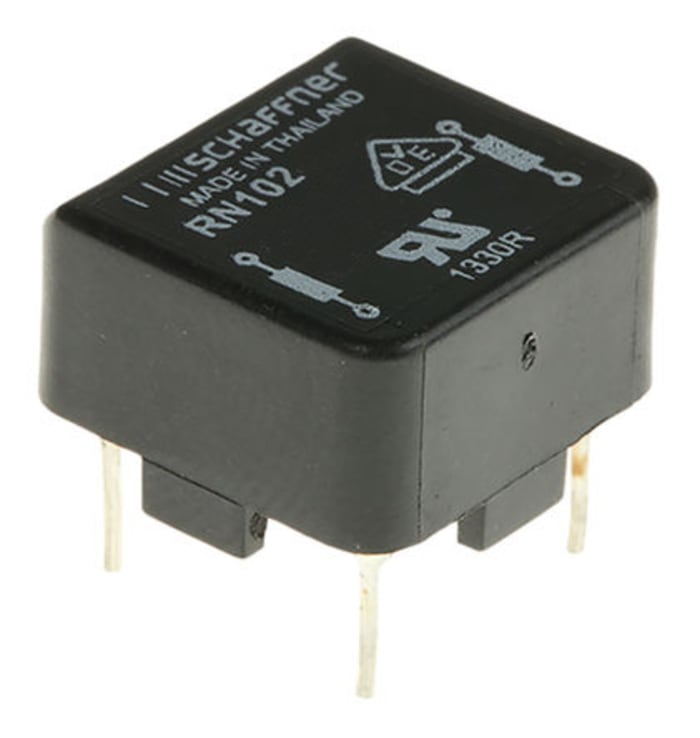

Schaffner 12 mH -30 → +50% Current Compensated Choke, 300mA Idc, 1.275Ω Rdc, RN
Technical Document
Specifications
Brand
SchaffnerInductance
12 mH
Maximum dc Current
300mA
Maximum DC Resistance
1.275Ω
Tolerance
-30 → +50%
Length
14.3mm
Depth
14.3mm
Height
9.3mm
Dimensions
14.3 x 14.3 x 9.3mm
Lead Pitch
10mm
Series
RN
Terminal Type
PC Pin
Maximum Operating Temperature
+125°C
Minimum Operating Temperature
-40°C
Product details
Schaffner RN Series Common Mode Chokes
Premium range of common mode chokes from Schaffner provide the user with reliable AC power line noise filtration. Can be used in a wide range of applications such as phase-angle control circuits in combination with saturating chokes and EMI input filters.
Rated currents from 0.3 →10 A
DC → 1kHz frequency
100kHz → 3MHz common-mode resonance frequency
Dual-choke configurations
Multiple PCB-mounting options
Small compact design
High saturation resistance and excellent thermal behaviour
Approvals
UL recognised
