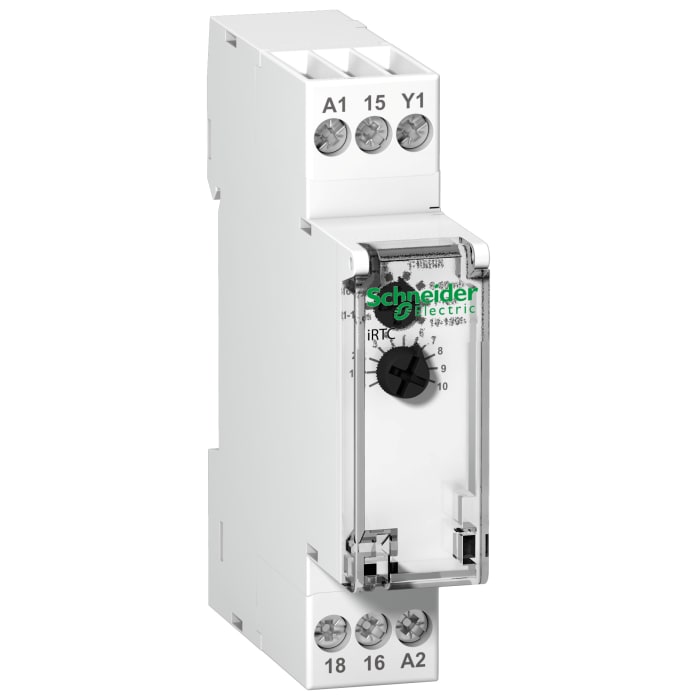

Schneider Electric Acti9 Series DIN Rail Mount Timer Relay, 24 → 240 V ac, 24V dc, 2-Contact, 0.1 →
Technical Document
Specifications
Brand
Schneider ElectricSupply Voltage
24 → 240 V ac, 24V dc
Mounting Type
DIN Rail
Time Range
0.1 → 360000s
Number of Contacts
2
Contact Configuration
SPDT
Time Increment
Seconds
Maximum Current
8A
Maximum Voltage
250V ac/dc
Width
18mm
Minimum Voltage
5V dc
Minimum Current
0.01A
Series
Acti9
Better World Product (Find out more)
Yes
Length
66mm
Maximum Operating Temperature
+55°C
Depth
81mm
Better World Verification
Green Premium
Minimum Operating Temperature
-5°C
Country of Origin
Indonesia
Product details
Acti9 Monitoring Relays
Range of relays for current, voltage and phase control, time delay relays with frontal regulation by trimmer and fault tripping indication
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 224.00
€ 224.00 Each (Exc. Vat)
€ 277.76
€ 277.76 Each (inc. VAT)
1
€ 224.00
€ 224.00 Each (Exc. Vat)
€ 277.76
€ 277.76 Each (inc. VAT)
Stock information temporarily unavailable.
1
Stock information temporarily unavailable.
