Technical Documents
Specifications
Brand
Schneider ElectricProduct Type
Push Button Switch
Switch Operation
Spring Return
Illuminated
No
Panel Cutout Size
22 mm
Series
Harmony XB4
Mount Type
Panel
Contact Configuration
SPDT
Terminal Type
Screw
IP Rating
IP67, IP69K
Minimum Operating Temperature
-25°C
Actuator Style
Rectangular
Maximum Operating Temperature
70°C
Switch Configuration
Double Head
Height
35mm
Length
90mm
Standards/Approvals
UL 508, EN/IEC 60947-5-1, JIS C8201-5-1, CSA C22.2 No. 14EN/IEC 60947-1, JIS C8201-1
Width
50mm
Better World Product
Yes
Better World Claim
Repairable by the End User
Legend
Symbol
Product Details

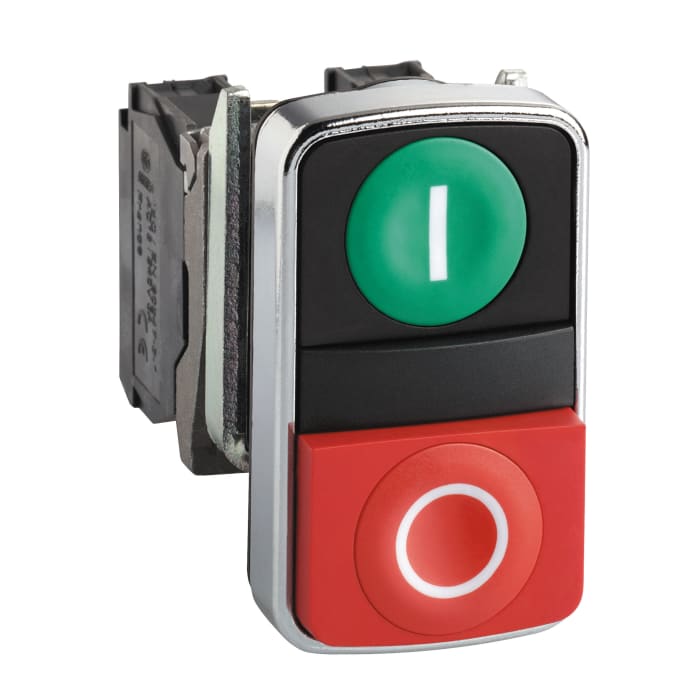

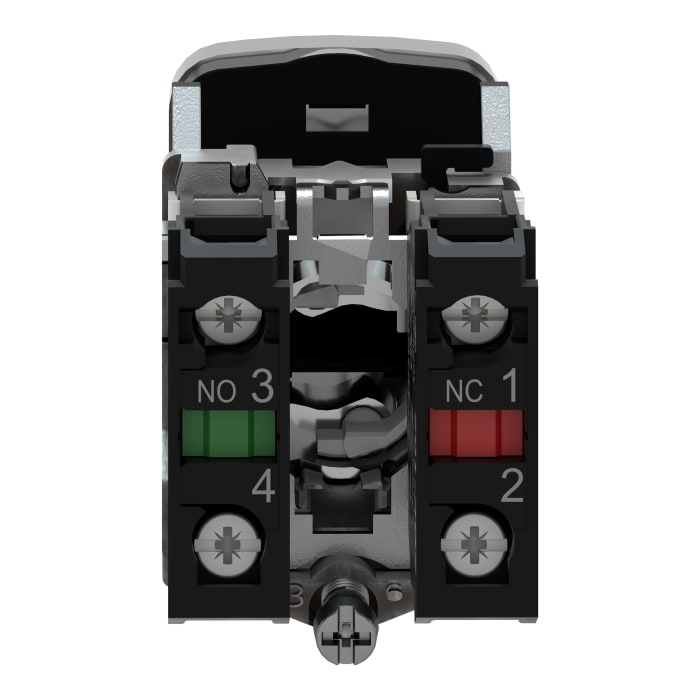

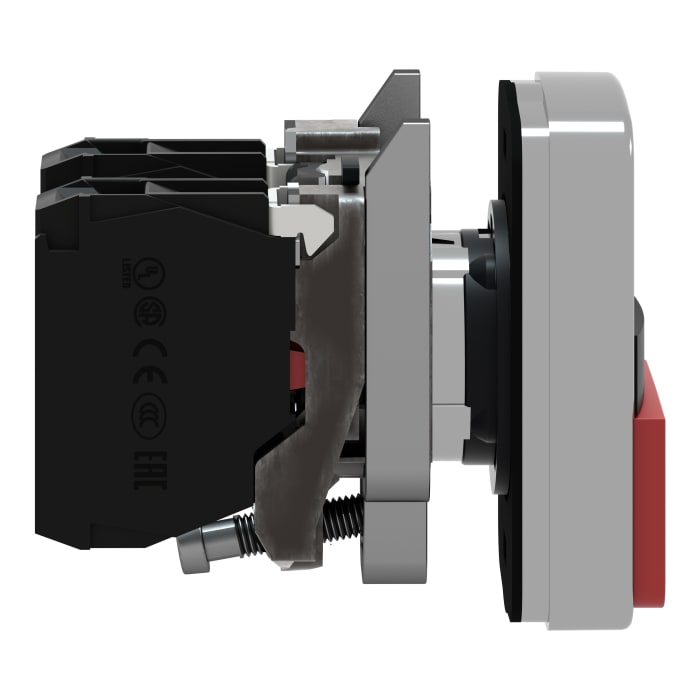

Use this Schneider Electric pushbutton to activate your machine. It features two buttons marked with the green 'I' and red 'O' symbols, so it's clear which is on and which is off. Thanks to a spring return, it goes back automatically to its original position so it doesn't need to be reset after use. The button comes with a contact block and robust Zamak (zinc alloy) fixing collar for quick and sturdy mounting onto panels. The 22mm mounting diameter is a standard size to fit onto most control decks.

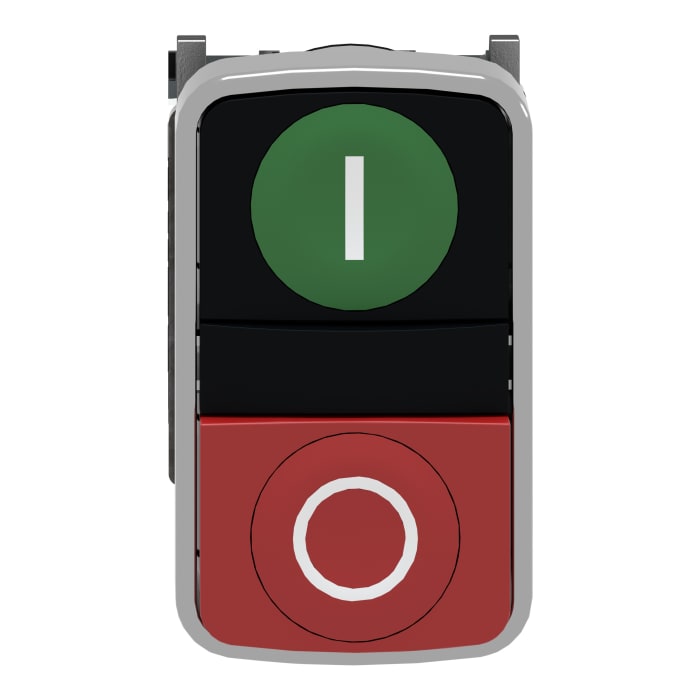

The 'I' button is in a flush position meaning it remains flat in the enclosure. The 'O' button is extended, which helps you find it easily in the event of an emergency.
