Spetsifikatsioonid:
Brand
TE ConnectivityProduct Type

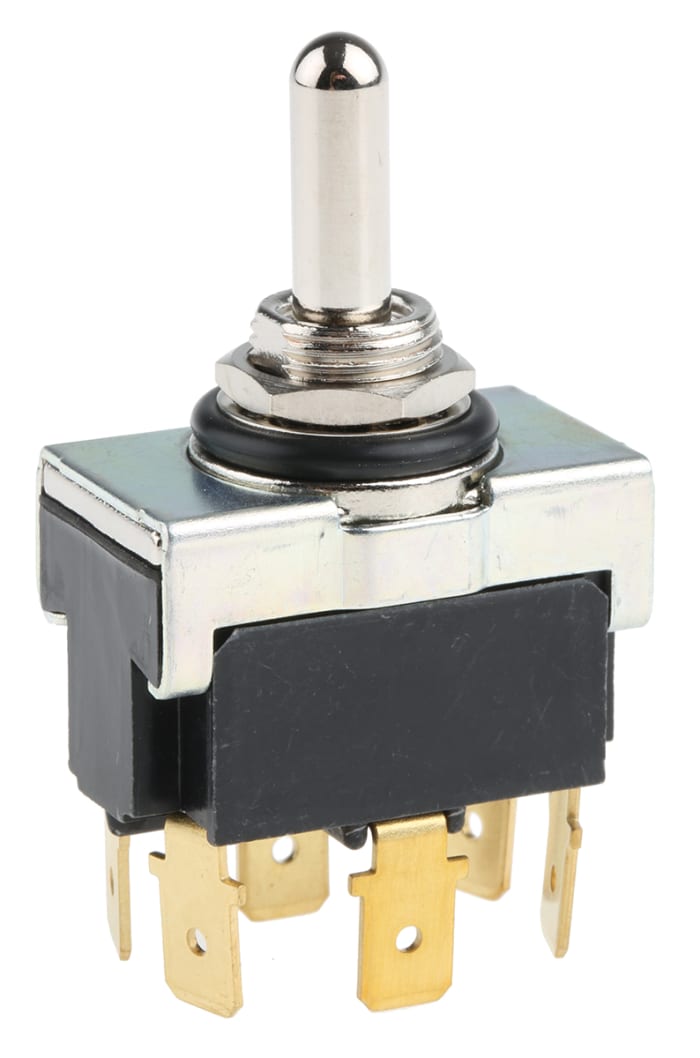

Toggle Switch
Contact Configuration
DPDT
Switch Operation
On-Off-On
Switch Contact Current
20A
Mount Type
Panel
Terminal Type
Tab
IP Rating
IP67
Actuator Length
17.5mm
Contact DC Voltage
30V dc
Minimum Operating Temperature
-20°C
Actuator Material
Brass
Maximum Operating Temperature
70°C
Length
17.48mm
Standards/Approvals
RoHS
Series
AWT
Mechanical Life
40000Cycles
Toote üksikasjad
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
Lao andmed ajutiselt ei ole saadaval.
€ 88,50
€ 88,50 tk (ilma käibemaksuta)
€ 109,74
€ 109,74 tk (koos käibemaksuga)
1
€ 88,50
€ 88,50 tk (ilma käibemaksuta)
€ 109,74
€ 109,74 tk (koos käibemaksuga)
Lao andmed ajutiselt ei ole saadaval.
1
| kogus | Ühikuhind |
|---|---|
| 1 - 24 | € 88,50 |
| 25 - 49 | € 80,50 |
| 50+ | € 75,50 |
