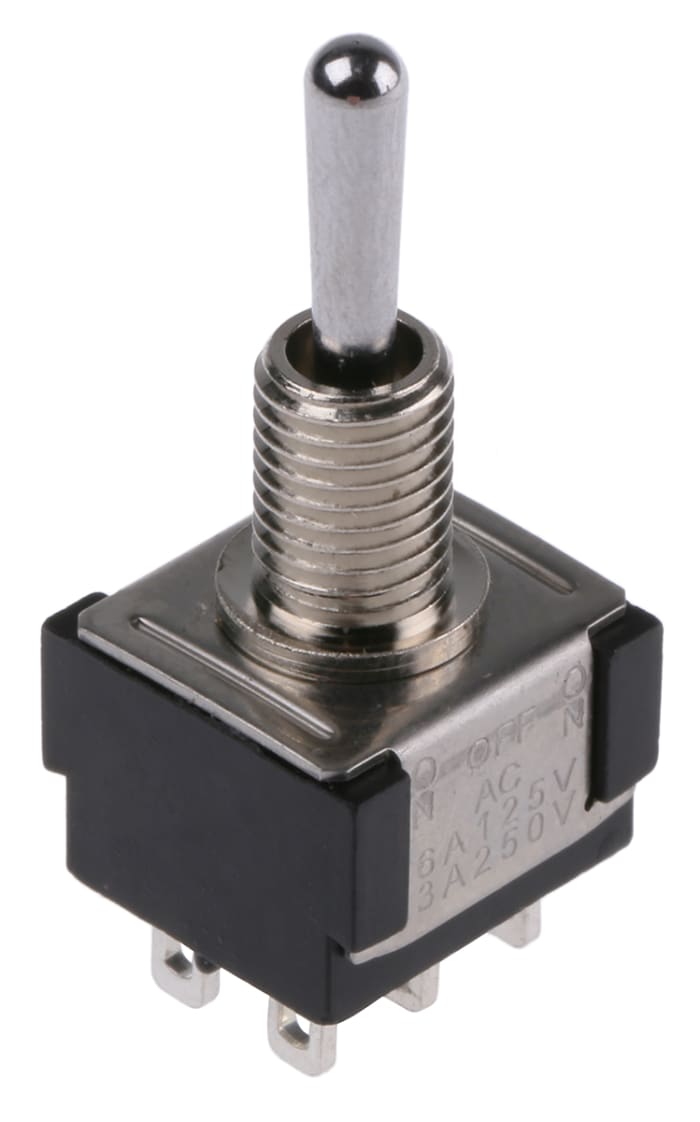

APEM Toggle Switch, Panel Mount, On-Off-On, DPDT, Solder Lug Terminal, 30V dc
Tehnilised dokumendid
Spetsifikatsioonid:
Brand
ApemContact Configuration
DPDT
Switch Operation
On-Off-On
Contact Current Rating
4 A @ 30 V dc
Mounting Type
Panel Mount
Terminal Type
Solder Lug
Illuminated
No
Panel Cut Out Diameter
6.5mm
Actuator Length
10.5mm
Actuator Material
Nickel Plated Brass
Voltage Rating
30V dc
Contact Resistance
10mΩ
Panel Cut Out Size
6.5mm
Contact Material
Gold Plated Silver
Operating Temperature Range
-40 → +85°C
Mechanical Life
100000Operations
Maximum Operating Temperature
+85°C
Minimum Operating Temperature
-40°C
Päritoluriik
France
Toote üksikasjad
Toggle Switches, Standard Lever
Approvals
UL; CSA; CECC; LNZ; GAM T1; QPL (Europe); MUAHAG; NATO
Miniature Lockable Toggle Switches
Approvals
UL E187490
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Lao andmed ajutiselt ei ole saadaval.
Palun kontrollige hiljem uuesti.
€ 29,90
tk (ilma käibemaksuta)
€ 36,48
tk (koos käibemaksuga)
1
€ 29,90
tk (ilma käibemaksuta)
€ 36,48
tk (koos käibemaksuga)
1
Osta lahtiselt
| kogus | Ühikuhind |
|---|---|
| 1 - 24 | € 29,90 |
| 25 - 49 | € 24,30 |
| 50 - 99 | € 22,10 |
| 100 - 249 | € 20,40 |
| 250+ | € 18,60 |
