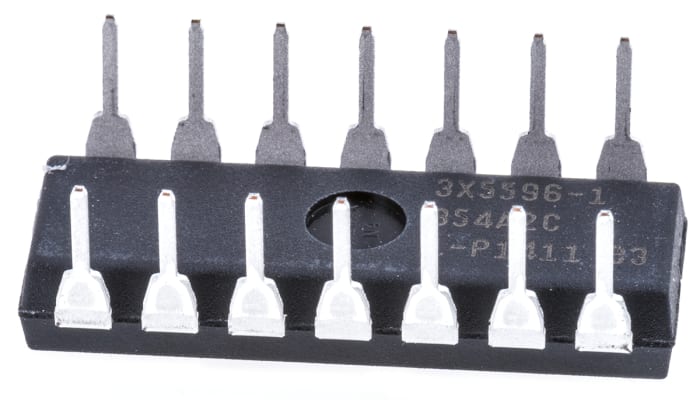

Microchip ATTINY84A-PU, 8bit AVR Microcontroller, ATtiny, 20MHz, 8 kB Flash, 14-Pin PDIP
Tehnilised dokumendid
Spetsifikatsioonid:
Brand
MicrochipFamily Name
ATtiny
Package Type
PDIP
Mounting Type
Through Hole
Pin Count
14
Device Core
AVR
Data Bus Width
8bit
Program Memory Size
8 kB
Maximum Frequency
20MHz
RAM Size
512 B
Number of PWM Units
1
Number of SPI Channels
2
Number of USART Channels
0
Number of UART Channels
0
Number of I2C Channels
1
Typical Operating Supply Voltage
1.8 → 5.5 V
Number of CAN Channels
0
Maximum Operating Temperature
+85 °C
Pulse Width Modulation
1(2 Channel)
Length
19.69mm
ADCs
8 x 10 bit
Width
7.11mm
Maximum Number of Ethernet Channels
0
Minimum Operating Temperature
-40 °C
Height
5.334mm
Number of LIN Channels
0
Dimensions
19.69 x 7.11 x 5.334mm
Program Memory Type
Flash
Number of Ethernet Channels
0
Number of PCI Channels
0
Instruction Set Architecture
RISC
Number of ADC Units
1
Toote üksikasjad
8-Bit tinyAVR® Microcontrollers
Atmel's tinyAVR® devices are optimized for applications that require performance, power efficiency, and ease-of-use in a small package.
