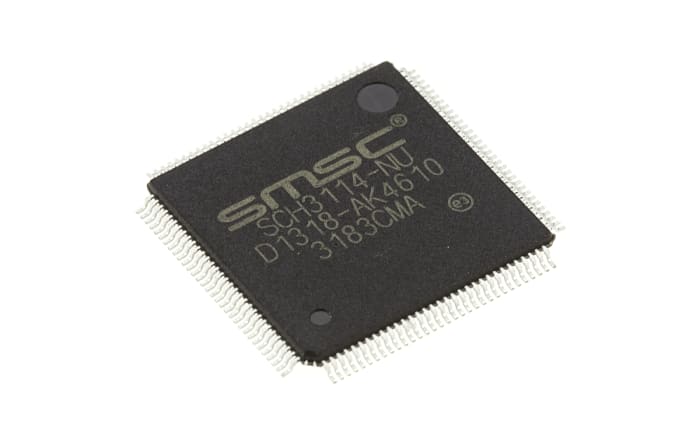

Microchip SCH3114-NU, 40, IO Controller, 128-Pin VTQFP
Tehnilised dokumendid
Spetsifikatsioonid:
Brand
MicrochipLAN Controller
No
IDE Controller
Yes
PCI Support
Yes
Number of I/O Channels
40
Serial ATA
No
DMA Controller
Yes
Mounting Type
Surface Mount
Package Type
VTQFP
Pin Count
128
Dimensions
14 x 14 x 1mm
Minimum Operating Temperature
0 °C
Maximum Operating Temperature
+70 °C
Päritoluriik
Malaysia
Toote üksikasjad
SCH311x Super I/O Controllers
The SCH3114 Super I/O Controller chip integrates many standard PC motherboard hardware functions into a single device.
Super I/O Controllers
The Super I/O Controller is a single chip that performs many functions that used to take several pieces of hardware in the past. This standardizes and simplifies the design, and thus reduces cost. The Super I/O chip typically is responsible for controlling the slower-speed, mundane peripherals found in every PC. Since these devices have been mostly standardized, they are virtually the same on every PC and it is easier to integrate these into a commodity chip instead of worrying about them for each motherboard design.
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
Lao andmed ajutiselt ei ole saadaval.
Palun kontrollige hiljem uuesti.
€ 16,10
Each (In a Tray of 90) (ilma käibemaksuta)
€ 19,642
Each (In a Tray of 90) (koos käibemaksuga)
90
€ 16,10
Each (In a Tray of 90) (ilma käibemaksuta)
€ 19,642
Each (In a Tray of 90) (koos käibemaksuga)
90
