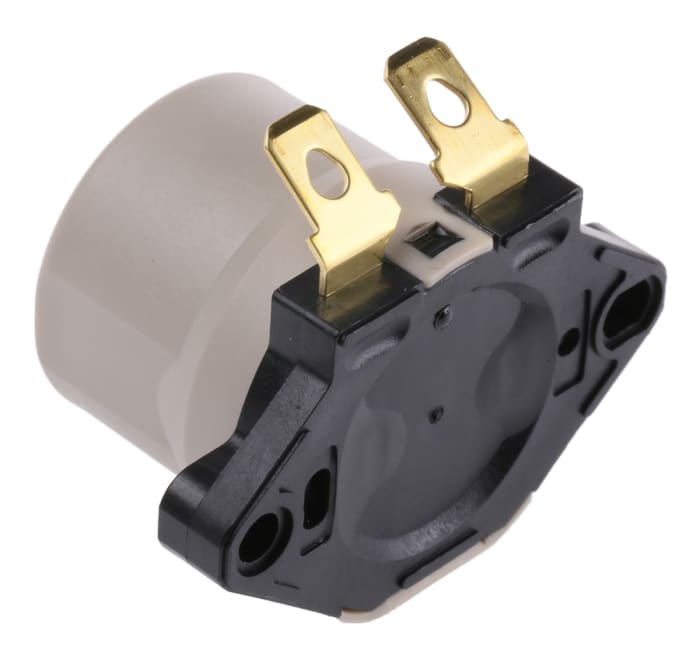

Omron 80 ° Horizontal Tilt Switch 100 mA

Name: Omron 80 ° Horizontal Tilt Switch 100 mA
Brand: Omron
SKU: 6229774
Availability: LimitedAvailability

RS Stock No.: 622-9774Brand: OmronManufacturers Part No.: D7E-3Distrelec Article No.: 30171135

View all in Tilt Switches

Technical Documents

Specifications

Brand

Omron

Differential Angle

80 °

Product Type

Tilt Switch

Mounting Orientation

Horizontal

Maximum Current

100mA

Maximum DC Voltage

30V dc

Contact Resistance

300mΩ

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

60°C

Depth

23.1mm

Length

36.4mm

Diameter

23.1mm

Standards/Approvals

RoHS

Width

23.6mm

Series

D7E

Country of Origin

Japan

Product Details

Sealed Mechanical Tilt Sensor

Operating angle from 50 → 80°
Sealed enclosure to IP67
Output capacity from 0.1mA at 5Vdc to 100mA at 30 Vdc
RoHS compliant
Differential angle 50 → 80°
