P.M.A KS40 Panel Mount PID Temperature Controller, 3 Output Relay 250V ac
Technical Document
Specifications
Brand
P.M.AOutput Type
Relay
Product Type
PID Temperature Controller
Number of Outputs
3
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
65°C
Terminal Type
Screw
Maximum Supply Voltage
250V ac
Auxiliary Power Supply
24 V
Digital Comms
RS485, RS422
Maximum Voltage
250V ac
Display Type
LED Display
Width
48mm
IP Rating
IP65
Standards/Approvals
DIN 46 244 (Terminals)
Length
118mm
Series
KS40
Mount Type
Panel Mount
Panel Depth
118mm
Country of Origin
United Kingdom
Product details

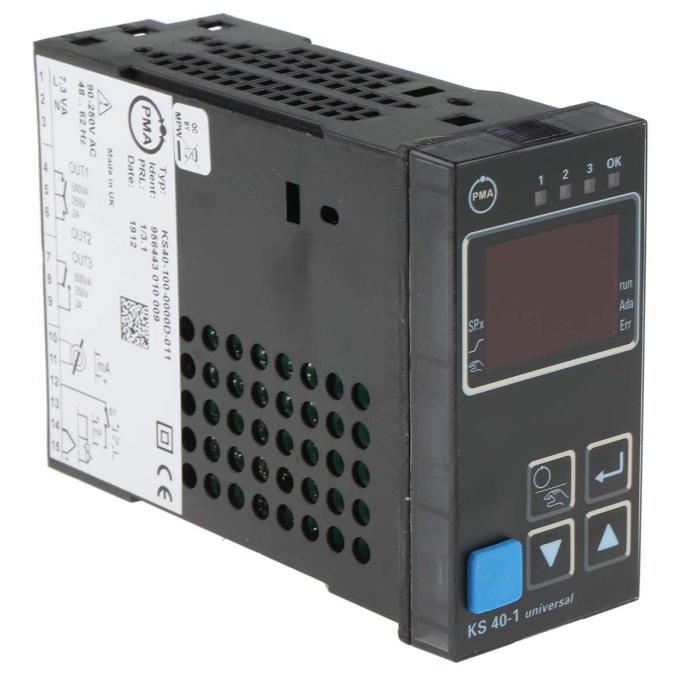

PMA KS 40-1 Temperature Controller
The universal temperature controller KS 40-1 is intended for universal, precise, and cost-effective control tasks in all branches of industry. For this, the unit provides simple 2-point (on/off) control, continuous PID control, or 3-point stepping control. The process value signal is connected via a universal input. A supplementary analog input can be used for heating current measurement or as an external setpoint input.
The KS 40-1 has three process outputs that can be 3 relays or 2 relays plus a universal output. This universal output can be used for operating a solid-state relay, a continuous current/voltage output or to energize a two-wire transmitter.
This controller is particularly well suited to the following industry applications: Furnaces and ovens, Burners and boilers, Plastics processing & Driers.
• BluePort® Front interface and BlueControl Software
• Maintenance manager and error list
• Automatic/Manual key
• Monitoring of heating current and input circuit
• Timer and programmer
• Extended limit signalling function with latch
• Type tested to EN 14597 (replaces DIN 3440), cULus
