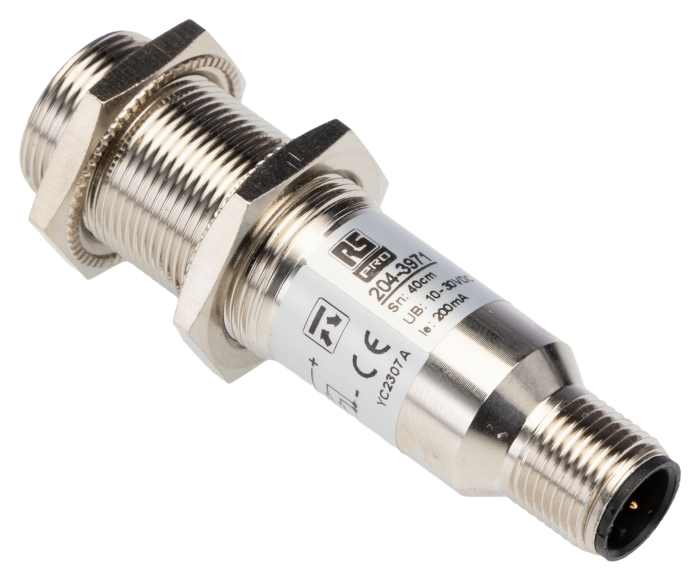

RS PRO Diffuse Photoelectric Sensor, Barrel Sensor
Technical Document
Specifications
Brand
RS ProProduct Type
Photoelectric Sensor
Sensor Style
Barrel
Detection Type
Diffuse
Output Type
PNP
Terminal Type
FASTON
Maximum DC Voltage
30V dc
Light Source
Infrared
Minimum Operating Temperature
-25°C
IP Rating
IP67
Materials Detected
Polymethyl Methacrylate
Maximum Operating Temperature
70°C
Maximum Current
100mA
Standards/Approvals
CE, cUL Certified, UL Listed
Response Time
6ms
Hazardous Area Certification
No
Mount Type
Cable
Series
MS4
Housing Material
Polyamide
Detection Range
200 mm
Country of Origin
Italy
Product details
Optical Proximity Switch, Plastic
Plug-in
Yellow polyamide housing sealed to IP67
LED status indication
Modulated infrared light operation
Opto isolated outputs
Output short circuit protected
