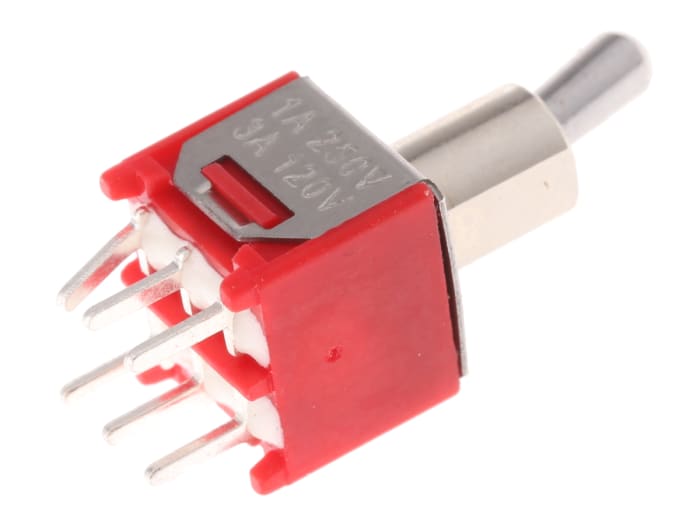

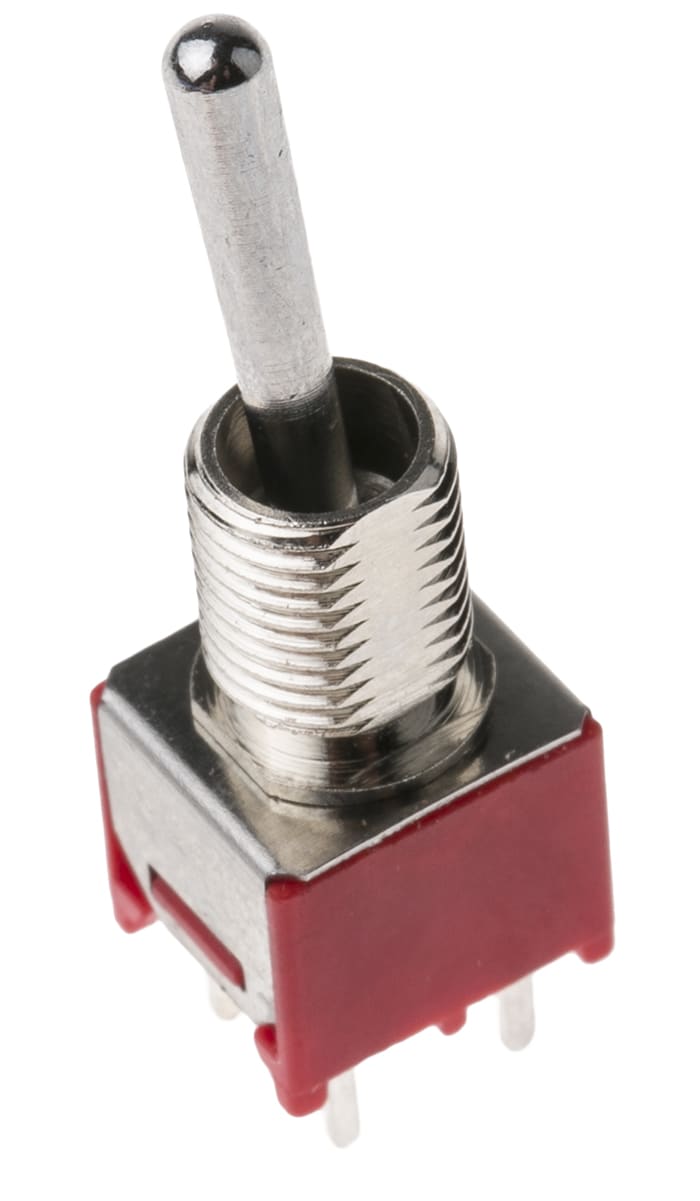

RS PRO Toggle Switch, PCB Mount, On-On, DPDT, Through Hole Terminal
Technical Document
Specifications
Brand
RS ProContact Configuration
DPDT
Switch Operation
On-On
Contact Current Rating
3 A @ 120 V ac
Mounting Type
PCB
Terminal Type
Through Hole
Panel Cut Out Diameter
4.95mm
Actuator Length
9.4mm
Actuator Material
Chromium Plated Brass
Contact Resistance
0.02Ω
Contact Material
Silver Plated Brass
Panel Cut Out Size
4.95mm
Maximum Operating Temperature
+85°C
Standards Met
RoHS & Lead Free
Mechanical Life
30000Cycles
Operating Temperature Range
-30 → +85°C
Minimum Operating Temperature
-30°C
Product details
Toggle Switches, Sub-Miniature - RS Series
RS series of sub-miniature toggle switches with a low contact resistance and are available with either Silver (Q) or Gold (R) contact material. The RS series sub-miniature toggle switches have a minimum insulation resistance of 1000MΩ 500V and a minimum dielectric strength of 1000 Vrms at sea level.
