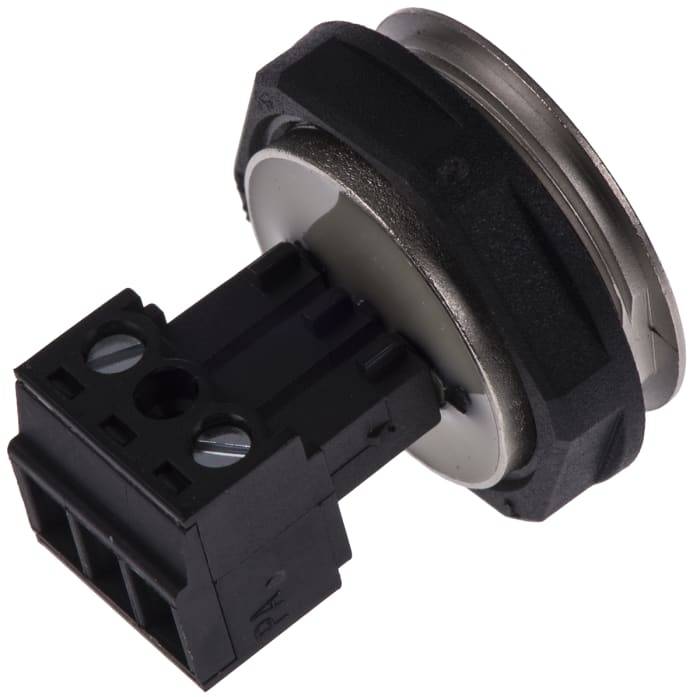

Schurter MCS 19 Series Push Button Switch, Momentary, Through Hole, 19 mm Cutout, SPST, IP65, IP67, 48 V dc 48 V ac

Name: Schurter MCS 19 Series Push Button Switch, Momentary, Through Hole, 19 mm Cutout, SPST, IP65, IP67, 48 V dc 48 V ac
Brand: Schurter
SKU: 4412918
Availability: LimitedAvailability

RS Stock No.: 441-2918Brand: SchurterManufacturers Part No.: 1241.2802Distrelec Article No.: 13507483

View all in Push Button Switches

Technical Documents

Specifications

Brand

Schurter

Product Type

Push Button Switch

Actuator Colour

Silver

Switch Operation

Momentary

Illuminated

Panel Cutout Size

19 mm

Series

MCS 19

Mount Type

Through Hole

Contact Configuration

SPST

Terminal Type

Screw

IP Rating

IP65, IP67

Contact DC Voltage

48V dc

Contact AC Voltage

48V ac

Actuator Style

Button

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

60°C

Standards/Approvals

RoHS

Switch Contact Current

125mA

Product Details

Anti-Vandal M19 Push Button Switches - MCS 19 Series

Product description
M19 Anti-vandal Switches from Schurter are momentary push buttons. These switches offer a rugged switch that is suitable to withstand challenging environments.

A range of momentary pushbutton switches for 19mm panel holes.
Options include case and button materials, buttons with or without legends and illumination, and switch termination styles.
Single pole normally open
Silver contacts
All switches supplied with nut and O-ring seal
Case colour natural
Contact Rating: 50mA / 24Vdc
