TE Connectivity Circular Connector, 10 Contacts, Cable, Standard Connector, Plug, Male, CPC Series

TE Connectivity Circular Connector

The TE connectivity CPC series 6 is a 10-pole, cable mount, male connector with a Plug type connection. The connector has a current rating of 13A. This fully sealed power connector utilises precision formed power band contacts that offer a rating of up to 45A for a single contact, in isolation. Manufactured from high strength thermoplastic, these connectors offer an economical and environmentally sealed solution.

Features and Benefits

• Cost efficient
• Dust resistant
• Environment friendly
• High endurance
• Impact resistant
• Operating temperature ranges between -50°C and 125°C
• Straight body orientation
• Waterproof

Applications

• Alternate energy
• Control engineering
• Electrical panels
• Factory automation
• Industrial machinery
• Wireless transmission

Certifications

• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• EU ELV Directive 2000/53/EC
• EU REACH Regulation (EC) No. 1907/2006
• IP65 rated
• IP67 rated
• UL listed

Series 6

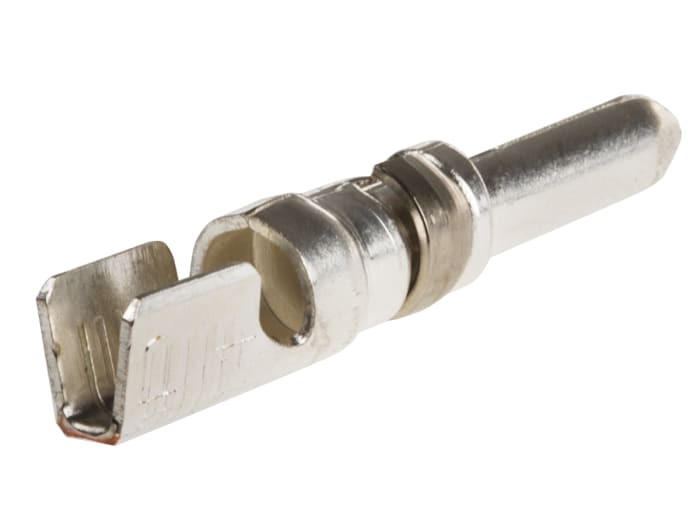

• Suitable contacts for Series 6 connectors see for example stock no. 360-2463

• Series 5 power connectors have 3 pole Powerband contacts
• Series 6 power connectors have 8 signal and 2 Powerband contacts
• A wire entry seal is required in conjunction with the backshell
• Include the flange seal with the panel socket for full sealing capabilities

Plugs, Sockets & Seals

Based on the successful and popular standard CPC series, these fully sealed IP65 power connectors utilise precision-formed Powerband contacts that offer a rating of up to 45A for single contacts, in isolation. Manufactured from high strength, impact resistant thermoplastic, rated UL94V-0, these connectors offer an economical, environmentally sealed solution.

Notes

The correct assembly procedures must be followed to ensure a full IP65 rating.
