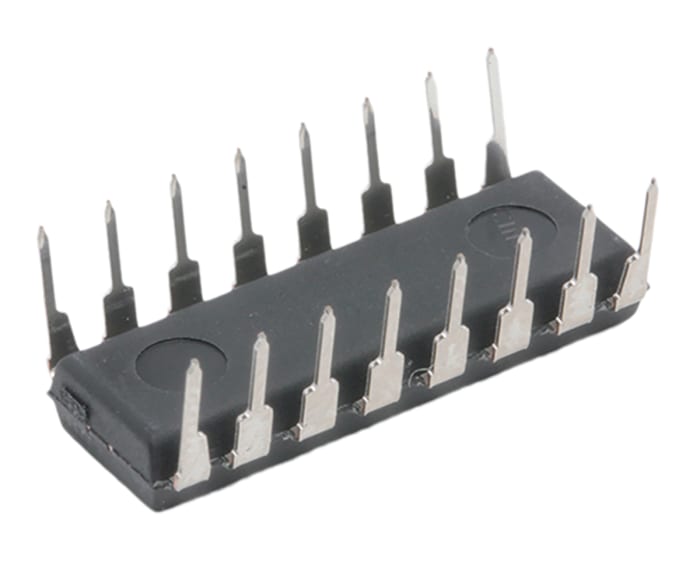

Texas Instruments CD74HC4050EE4, Hex-Channel Buffer, Converter, Non-Inverting, 16-Pin PDIP

Brand

Logic Family

HC

Logic Function

Buffer, Converter

Input Type

Single Ended

Polarity

Non-Inverting

Mounting Type

Through Hole

Package Type

PDIP

Pin Count

16

Maximum High Level Output Current

-5.2mA

Maximum Low Level Output Current

5.2mA

Maximum Propagation Delay Time @ Maximum CL

14 ns @ 6 V, 17 ns @ 4.5 V, 85 ns @ 2 V

Dimensions

19.3 x 6.35 x 4.57mm

Maximum Operating Supply Voltage

6 V

Propagation Delay Test Condition

50pF

Maximum Operating Temperature

+125 °C

Length

19.3mm

Width

6.35mm

Minimum Operating Supply Voltage

2 V

Minimum Operating Temperature

-55 °C

Height

4.57mm
