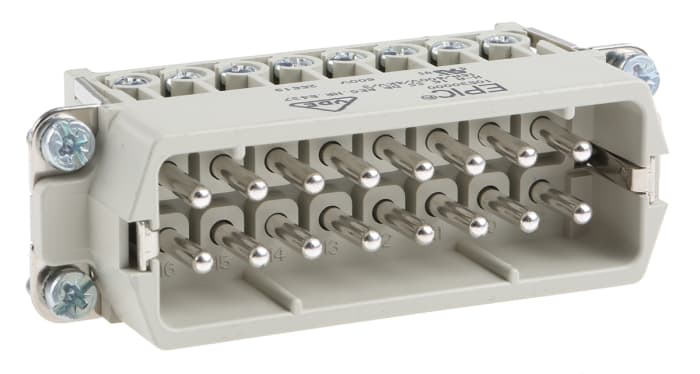

TE Connectivity Heavy Duty Power Connector Insert, 16A, H-A Series Male, 16 Contacts

HA Inserts

Male and female inserts will fit either cable hoods or base housings.

• Each insert has a separate earth contact
• To make up a 32 way male connector the 1-16 pole (16 way) and 17-32 pole inserts should be purchased together. These inserts will fit alongside each other in 32 way housings
• To make up a 32 way female connector two 1-16 pole (16 way) pole inserts should be purchased together. These inserts will fit alongside each other in big 32 way housings
• Sequential numbering for high density applications
• Twist locked
• Screw and spring clamp contacts already included
• For crimp contacts the pins should be ordered separately see stock no. 416-171, for a suitable crimping tool see stock no. 416-199

Inserts

Approvals

UL Listed, CSA Certified, SEV
